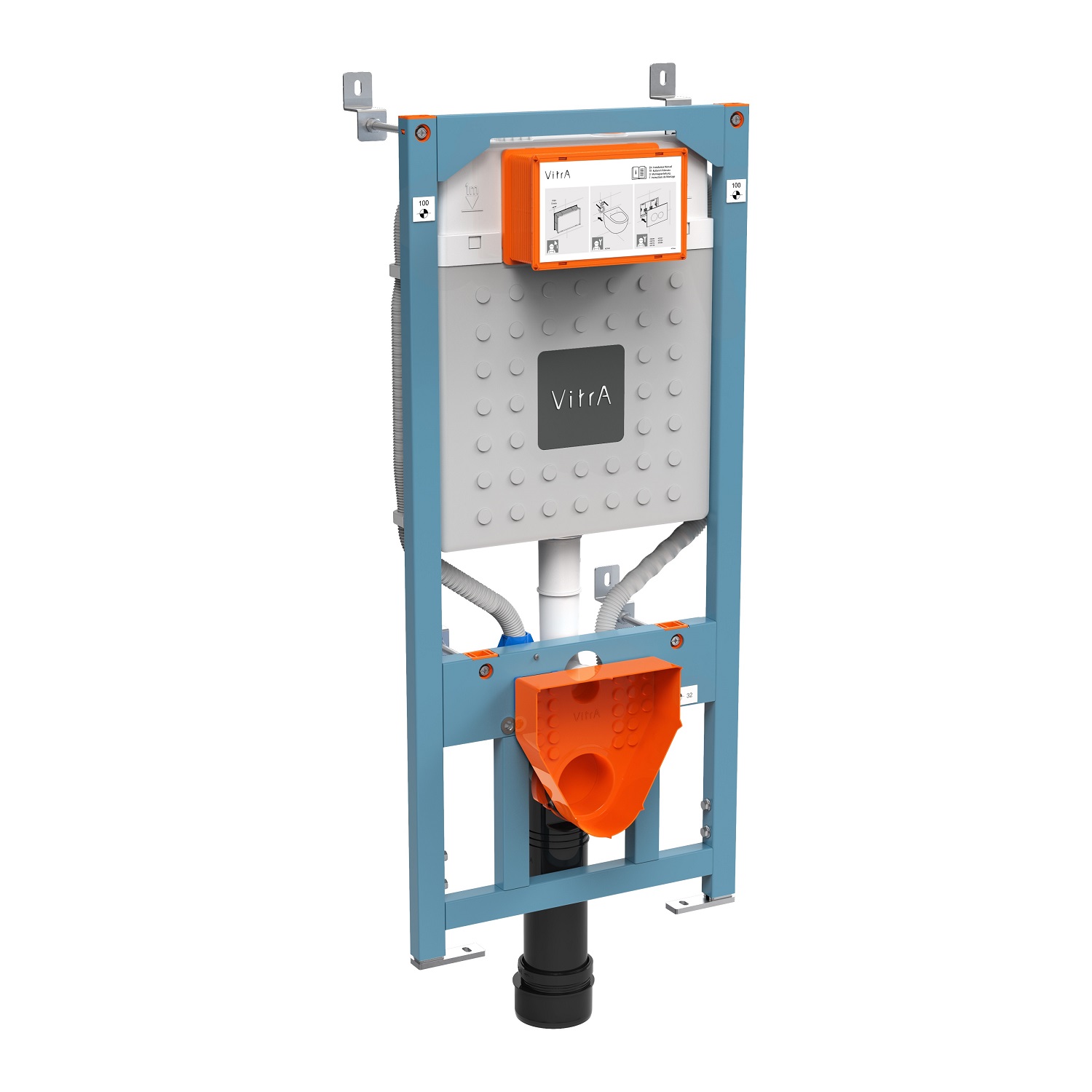

Designed to make installing wall-hung and back-to-wall WCs simple, VitrA has introduced its new range of versatile frames and concealed cisterns, including models for floor fixing, floor and wall fixing, reduced height and back-to-wall installations, with 3/6 litre and 2.5/4 litre cisterns.

The new frames have clever features to make installation easy, quick, and fault-free; these include spring-loaded feet to bear the weight and an adjustable clamp to secure the waste pipe in place – both allowing a one-person installation.  Water and electrical connections to allow the installation of shower toilets and electrical flush plates, are included. The conduits can be accessed through the flush plate opening, meaning they can be connected in the future retrospectively without causing damage to the wall.

The new frames include a host of technical USPs. Each comes with a wall connection fixing kit, including fully adjustable fixation brackets and front adjustment mounting bolts. There are three water inlet options – left, top and back – for extra flexibility. Spring-loaded feet for perfect positioning make it easy for one-person installation, as well as the adjustable clamp which holds the waste pipe in position, with 50mm of adjustment. Clean water and wastewater pipes are also fixed together with load-bearing clamps.

The thickness of the frames is 30mm x 40mm for perfect rigidity, and the V stopper and flush plate area have reference points that can leave an imprint on the plasterboard to show where to cut the holes.  The frames and cisterns are all subject to rigorous reliability and performance testing, and the 3/6 litre cistern option has WRAS approval.

Margaret Talbot, VitrA marketing manager, explains, “Our new concealed cisterns and frames have been produced to be especially trouble-free and super easy to install in various settings – exactly what installers have been asking for. Ease of installation, quiet in operation and a fast first-fix option.”

VitrA offers a range of mechanical and electronic flush plates for use with the frames. For helpful online advice on installation, VitrA has collaborated with Plumberparts on a series of how-to videos.
